SKU: YAM-DM3S
AudioNest

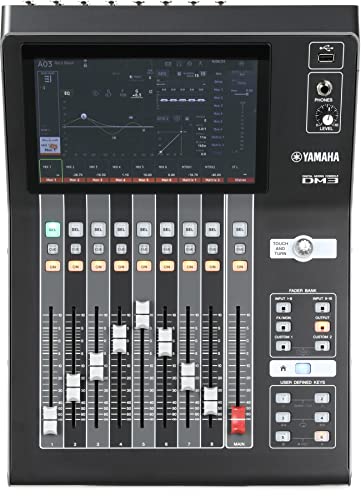

Yamaha DM3 Standard 22-Channel Digital Mixing Console
$1,399.49
INTUITIVE TOUCH CONTROL: A 9-inch multi-touch screen, Touch and Turn rotary encoder, and 8 + 1 fader configuration provide quick access to essential mixing functions96 KHZ AUDIO: Supports 48 kHz and 96 kHz sampling rates, providing transparent, uncolored sound for live mixing,...
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product
PRODUCT DETAILS
Everything you need to know.
INTUITIVE TOUCH CONTROL: A 9-inch multi-touch screen, Touch and Turn rotary encoder, and 8 + 1 fader configuration provide quick access to essential mixing functions
96 KHZ AUDIO: Supports 48 kHz and 96 kHz sampling rates, providing transparent, uncolored sound for live mixing, streaming, recording, and installed applications
VERSATILE MIXING TOOLS: Includes six Mix buses, two Matrix buses, two FX buses, flexible patching, 18 effects, and graphic EQ on Mix and Stereo channels
USB RECORDING SUPPORT: Records and plays back up to 18 tracks through USB to Host, with convenient two-track recording and playback using a USB storage device
COMPACT PORTABLE DESIGN: Combines professional features and robust construction in a compact 143 lb body suited for live venues, studios, streaming setups, and installations
The Yamaha DM3 Standard is a compact 22-channel digital mixing console built for live sound, streaming, recording, and installed applications. It combines 96 kHz audio, flexible patching, and professional mixing tools in a portable 14.3 lb design. A 9-inch multi-touch screen, eight channel faders, one main fader, and the Touch and Turn rotary encoder provide fast, intuitive control. The console offers 16 mic/line inputs, eight XLR outputs, 18-channel USB recording and playback, two multi-effects processors with 18 effect types, and graphic EQ on Mix 1-6 and Stereo channels. QuickPro Presets, Scene Presets, DM3 Editor, StageMix, MonitorMix, and DAW Remote help streamline setup and operation across a wide range of environments. The DM3 Standard provides the core DM3 Series capabilities without Dante connectivity.
Mixing Capacity: 16 Mono + 1 Stereo + 2 FX Return Input Channels
Mix Buses: 6
Matrices: 2, Supports Input to Matrix
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1
Analog Inputs: 16 Mic/Line, 12 XLR + 4 XLR/TRS Combo
Analog Outputs: 8 XLR
Network: 1 RJ-45
USB to Host: 1 USB Type-B, USB 2.0
USB to Device: 1 USB Type-A
Phones: 1 TRS Phones
User Interface: 9-Inch Multi-Touch Screen, 9 Faders, Touch and Turn Rotary Encoder
PC/Mac Recording: 18 Tracks
PC/Mac Playback: 18 Tracks
USB Storage Recording: 2 Tracks
USB Storage Playback: 2 Tracks
Sampling Frequency: 96 kHz / 48 kHz
Dimensions: 12.6 x 5.6 x 18.0 Inches
Net Weight: 14.3 lb
96 KHZ AUDIO: Supports 48 kHz and 96 kHz sampling rates, providing transparent, uncolored sound for live mixing, streaming, recording, and installed applications
VERSATILE MIXING TOOLS: Includes six Mix buses, two Matrix buses, two FX buses, flexible patching, 18 effects, and graphic EQ on Mix and Stereo channels
USB RECORDING SUPPORT: Records and plays back up to 18 tracks through USB to Host, with convenient two-track recording and playback using a USB storage device
COMPACT PORTABLE DESIGN: Combines professional features and robust construction in a compact 143 lb body suited for live venues, studios, streaming setups, and installations
The Yamaha DM3 Standard is a compact 22-channel digital mixing console built for live sound, streaming, recording, and installed applications. It combines 96 kHz audio, flexible patching, and professional mixing tools in a portable 14.3 lb design. A 9-inch multi-touch screen, eight channel faders, one main fader, and the Touch and Turn rotary encoder provide fast, intuitive control. The console offers 16 mic/line inputs, eight XLR outputs, 18-channel USB recording and playback, two multi-effects processors with 18 effect types, and graphic EQ on Mix 1-6 and Stereo channels. QuickPro Presets, Scene Presets, DM3 Editor, StageMix, MonitorMix, and DAW Remote help streamline setup and operation across a wide range of environments. The DM3 Standard provides the core DM3 Series capabilities without Dante connectivity.
Mixing Capacity: 16 Mono + 1 Stereo + 2 FX Return Input Channels
Mix Buses: 6
Matrices: 2, Supports Input to Matrix
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1
Analog Inputs: 16 Mic/Line, 12 XLR + 4 XLR/TRS Combo
Analog Outputs: 8 XLR
Network: 1 RJ-45
USB to Host: 1 USB Type-B, USB 2.0
USB to Device: 1 USB Type-A
Phones: 1 TRS Phones
User Interface: 9-Inch Multi-Touch Screen, 9 Faders, Touch and Turn Rotary Encoder
PC/Mac Recording: 18 Tracks
PC/Mac Playback: 18 Tracks
USB Storage Recording: 2 Tracks
USB Storage Playback: 2 Tracks
Sampling Frequency: 96 kHz / 48 kHz
Dimensions: 12.6 x 5.6 x 18.0 Inches
Net Weight: 14.3 lb
