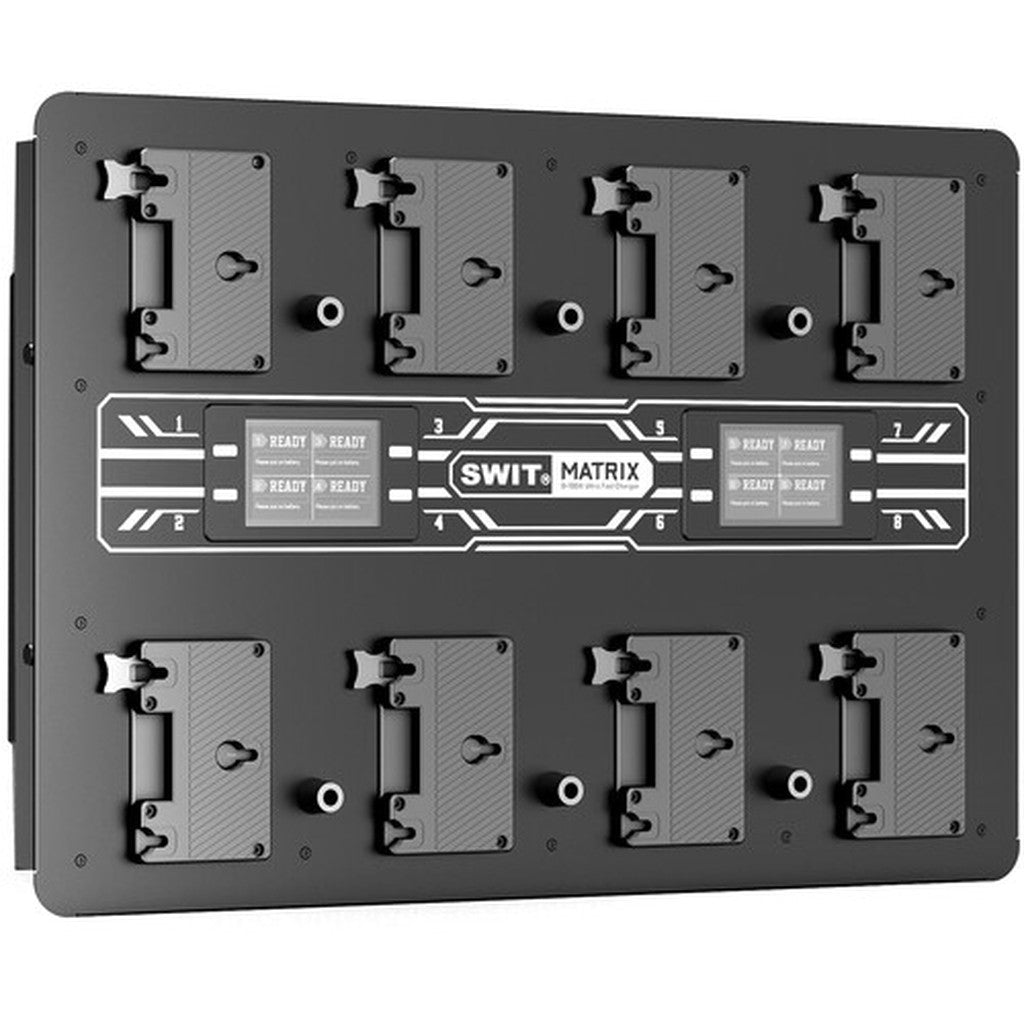

SWIT MATRIX-A8 8-Channel 100W Gold Mount Battery Charger

SWIT MATRIX-A8 8-Channel 100W Gold Mount Battery Charger

The SWIT MATRIX-A8 8-channel 100W Gold Mount battery charger simultaneously charges up to eight professional batteries. Each channel delivers ultra-fast 16.8V charging, helping broadcast facilities, rental houses, and production teams reduce battery turnaround times while keeping multiple camera power packs organized in one centralized charging station.

Designed for high-volume production environments, the MATRIX-A8 provides up to 100W of charging power per channel for supported SWIT batteries rated at 160Wh or higher. Buyers seeking an eight-bay Gold Mount charger, a wall-mounted broadcast battery charger, or a fast charger for rental inventory gain dependable simultaneous operation without rotating batteries between charging positions.

Two 3.5-inch color LCD screens display charging progress, current, voltage, and battery cycle information for every channel. Large LED indicators remain visible from a distance, while the rear mounting plate supports installation on a wall, storage rack, DIT cart, or compatible 19-inch rack bracket. Batteries are sold separately.

Key Features

• Eight-Channel Simultaneous Charging: Charges up to eight compatible Gold Mount batteries at the same time.
• Up to 100W Per Channel: Delivers 16.8V, 6A charging for supported SWIT 14.4V batteries rated at 160Wh or higher.
• Reduced Charging Time: Ultra-fast performance can save up to 60% compared with conventional charging systems.
• Dual Color Displays: Two 3.5-inch LCD screens show charging progress, current, voltage, and battery cycle counts.
• Long-Distance Status Monitoring: Large LED indicators make charging status easy to check across equipment rooms and production areas.
• Flexible Installation: Rear mounting hardware supports wall, storage rack, DIT cart, or compatible 19-inch rack installations.
• Universal AC Input: Accepts 100 to 240 VAC power for use across a wide range of professional facilities.

Technical Specifications

• Charger Type: Eight-bay wall charger
• Battery Compatibility: Gold Mount batteries
• Charging Mode: Simultaneous
• Maximum Power: 900W
• Power Input: 100 to 240 VAC, 50/60 Hz
• Input Connector: IEC female
• High-Power Output: 16.8 VDC, 6A, 100W per channel for supported SWIT 14.4V batteries rated at 160Wh or higher
• Standard Output: 16.8 VDC, 3A, 50W per channel for other compatible batteries
• Displays: Two 3.5-inch color LCD screens
• Displayed Information: Charging progress, charging current, voltage, and battery cycle count
• Status Indicators: Large LED charging indicators
• Mounting: Rear wall-mounting plate with support for compatible 19-inch rack brackets, storage racks, and DIT carts
• Approximate Charging Time for 160Wh Battery: 2 hours 15 minutes
• Approximate Charging Time for 220Wh Battery: 3 hours 20 minutes
• Approximate Charging Time for 270Wh Battery: 3 hours 40 minutes
• Approximate Charging Time for 290Wh Battery: 3 hours 50 minutes
• Approximate Charging Time for 420Wh Battery: 5 hours 20 minutes
• Operating Temperature: 32 to 104°F
• Operating Humidity: 10 to 90%
• Dimensions: 24.8" x 17.2" x 3.5"
• Net Weight: 23.4 lbs
• Package Weight: 35 lbs
• Box Dimensions: 29" x 21.5" x 6.5"
• Warranty: Two-year conditional manufacturer warranty

What's In the Box

• SWIT MATRIX-A8 8-Channel 100W Gold Mount Battery Charger
• USA Type-A/B to IEC power cable
