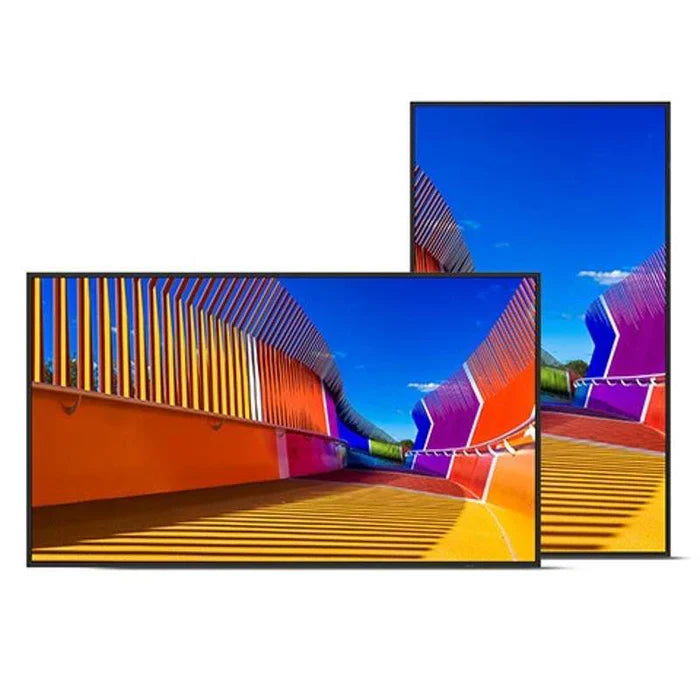

Sharp PN-E509 50-Inch 4K UHD Commercial Display

Sharp PN-E509 50-Inch 4K UHD Commercial Display

The Sharp PN-E509 50-inch 4K UHD commercial display delivers detailed visuals for meeting rooms, presentations, digital signage, and corporate communications. Its 3840 x 2160 VA panel combines 350 cd/m² brightness, a 4000:1 contrast ratio, wide 178° viewing angles, and a 25% haze treatment that reduces distracting reflections.

Businesses purchasing a 50-inch professional display with USB-C connectivity gain a streamlined solution for collaboration and entry-level signage. Dual HDMI 2.0 inputs and USB-C simplify source connections, while the integrated USB media player supports plug-and-play content without an external playback device. Landscape and portrait installation options suit offices, classrooms, retail spaces, hospitality venues, and public information displays.

The commercial-grade metal construction supports dependable 16/7 operation. Integrated LAN, RS-232C, infrared control, programmable scheduling, and NaViSet Administrator 2 compatibility help facilities teams manage professional display installations. Built-in 10W + 10W speakers, TileMatrix support, powered USB ports, and a three-year advanced replacement warranty further support long-term commercial AV deployment.

Key Features

• 50-Inch 4K UHD Display: Presents detailed professional content at a native 3840 x 2160 resolution.
• High-Contrast VA Panel: Produces a 4000:1 typical contrast ratio for defined dark and bright imagery.
• Anti-Reflective Screen: Uses a 25% haze treatment to reduce glare under ambient lighting.
• USB-C Connectivity: Accepts DisplayPort Alt Mode video and supplies up to 15W of device power.
• Integrated USB Media Player: Plays compatible image, video, and audio content directly from USB storage.
• Flexible Mounting: Supports landscape, portrait, and -20° to 20° tilted installations.
• Commercial Duty Cycle: Provides reliable 16-hour-per-day, seven-day-per-week operation.
• Remote Management: Supports network administration with LAN and NaViSet Administrator 2.

Technical Specifications

Display

• Product Type: 50-Inch 4K UHD Professional Commercial Display
• Panel Technology: VA with Direct LED Backlighting
• Viewable Image Size: 49.5"
• Native Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Brightness: 350 cd/m² Typical
• Contrast Ratio: 4000:1 Typical
• Viewing Angle: 178° Horizontal / 178° Vertical
• Color Gamut: 72%
• Displayable Colors: 1.07 Billion
• Refresh Rate: 60 Hz
• Panel Haze: 25% Anti-Reflective
• Orientation: Landscape and Portrait with Counterclockwise Rotation
• Tilt Installation Range: -20° to 20°
• Operating Schedule: 16/7

Connectivity and Control

• HDMI Inputs: Two HDMI 2.0
• USB-C Input: One USB-C with DisplayPort Alt Mode
• USB-A Port: One USB-A, 5V/500mA
• USB-C Power Output: 5V/3000mA, Up to 15W
• Audio Output: 3.5mm Mini Jack
• Network Control: 100 Mbps LAN
• Serial Control: RS-232C Input via 9-Pin D-Sub
• Remote Control: Infrared Remote
• Remote Management: NaViSet Administrator 2 Compatible
• Input Detection: Automatic Source Detection and Switching
• Scheduling: 24-Hour On/Off Timer
• Multi-Display Function: TileMatrix Support

Audio and Media Playback

• Integrated Speakers: 10W + 10W
• Integrated Media Player: USB Image, Video, and Audio Playback
• Maximum Playback Resolution: Native 4K UHD
• Auto-Play: Supported

Power

• Typical Power Consumption: 99W
• Maximum Power Consumption: 135W
• Network Standby Consumption: 2W
• Normal Standby Consumption: Less Than 0.5W
• Input Current: 1.6A to 0.6A at 100–240V AC
• Power Supply: Built-In IEC Power Supply

Physical Specifications

• Dimensions: 44.09" x 25.24" x 2.36"
• Weight: 20.28 lbs
• Bezel Width: 0.43" on All Sides
• VESA Mounting Pattern: 7.87" x 7.87"
• Mounting Hardware: Four M6 x 14mm Mounting Holes
• Packaging Dimensions: 49.33" x 29.96" x 5.04"
• Packaging Weight: 28.66 lbs
• Construction: Commercial-Grade Metal Frame Bezel

Environmental and Warranty

• Operating Temperature: 32°F to 104°F
• Operating Humidity: 20% to 80%
• Maximum Operating Altitude: 16,404 ft
• Limited Warranty: Three-Year Advanced Replacement

What's In the Box

• Sharp PN-E509 Commercial Display
• 9.84' AC Power Cord
• Cord Clamp
• USB Cover
• Infrared Remote Control
• AAA Batteries
