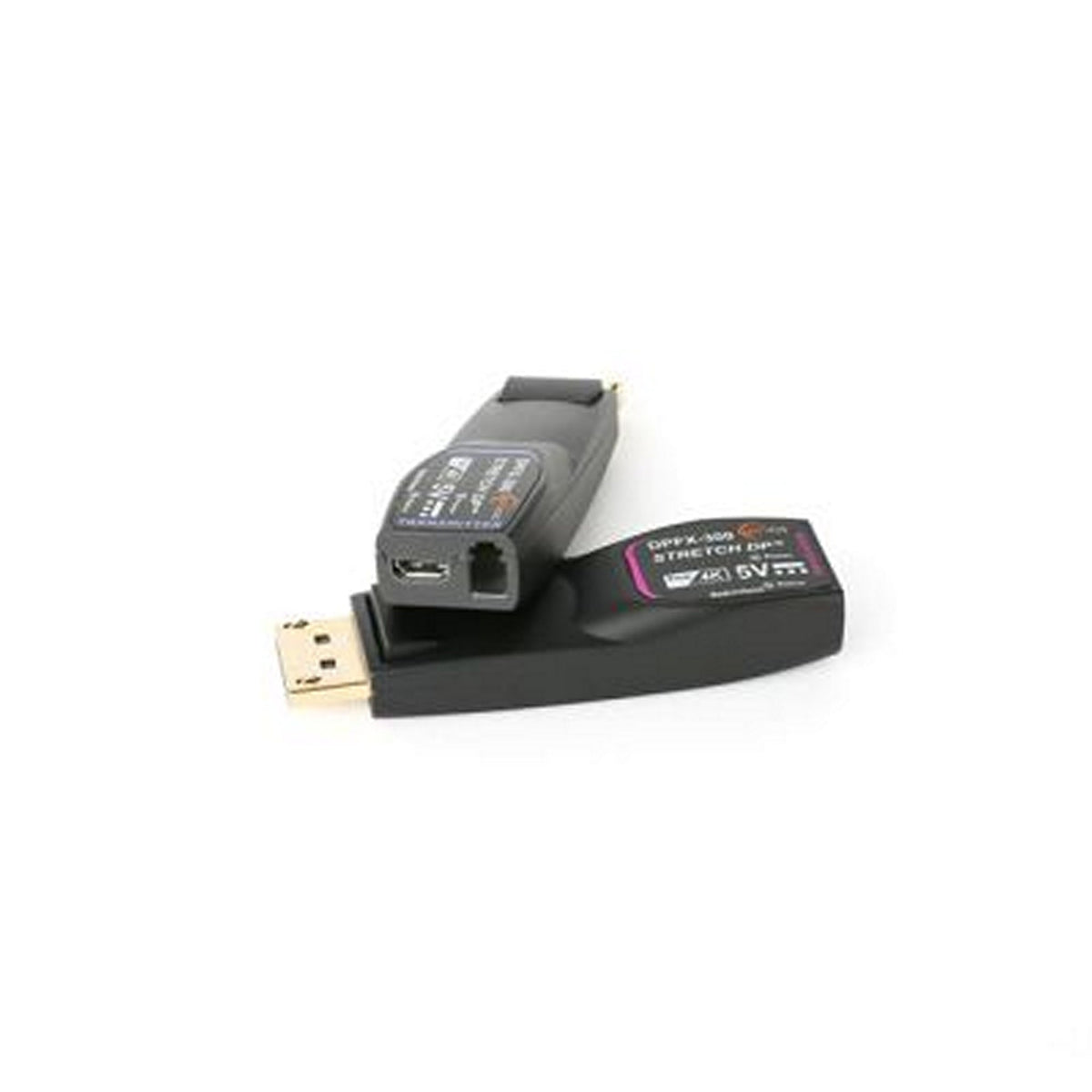

Opticis DPFX-300-TR One-Fiber Multimode DisplayPort 1.2 Detachable Extender Module

Bring flawless 4K UHD (4096×2160) video at 60 Hz to remote displays with the Opticis DPFX-300-TR. This single-fiber multimode extender reliably transmits uncompressed DisplayPort 1.2 signals up to 200 m (656 ft) over a single LC connector, delivering rock-solid performance for control rooms, digital signage, and simulation applications.

Installation is plug-and-play: hot-swappable transmitter and receiver modules capture and restore EDID automatically, while auto-power switching draws 3.3 V from the DisplayPort interface or via included USB cables. Encased in die-cast aluminum, each module offers superior EMI/RFI shielding and efficient heat dissipation, with front-panel LEDs providing instant power and link-status feedback.

Key Features

  • True 4K @ 60 Hz: Full 4096×2160 resolution with 4:4:4 chroma over fiber
  • Single-Fiber Reach: Extends DisplayPort 1.2 signals up to 200 m (656 ft) on OM3 multimode fiber
  • Hot-Swappable Modules: Detachable Tx/Rx units for zero-downtime maintenance
  • Auto-EDID Management: Patent-pending self-EDID capture and restore for seamless plug-and-play
  • Auto-Power Switching: Draws power from DP interface or 5 V USB (cables included)
  • Rugged Design: Die-cast aluminum housings for EMI/RFI shielding and durability
  • LED Indicators: Real-time visual status of power and link integrity
  • Auxiliary Channel: I²C support over fiber for remote control and diagnostics

Technical Specifications

  • Interface Standard: DisplayPort 1.2 with DP++ support
  • Maximum Resolution: 4096×2160 @ 60 Hz (4K UHD, 4:4:4 chroma)
  • Data Rate: 21.6 Gbps total (5.4 Gbps per lane)
  • Transmission Distance: Up to 200 m (656 ft) over single LC multimode fiber (OM3)
  • Connector Types: 20-pin DP input/output; LC multimode fiber
  • Power Requirements: 3.3 V from DP pin #20 or 5 V ⎓ 1 A via USB
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: –30 °C to 70 °C
  • Humidity: 10%–85% RH, non-condensing
  • Certifications: CE, FCC, UL, Class 1 Laser Safety, RoHS

What’s Included

  • 1× Transmitter module (Tx)
  • 1× Receiver module (Rx)
  • 1× 0.2 m male-to-female DisplayPort copper cable
  • 2× Micro-USB to USB power cables
  • 2× 5 V ⎓ 1 A USB power adapters
  • 1× User manual
