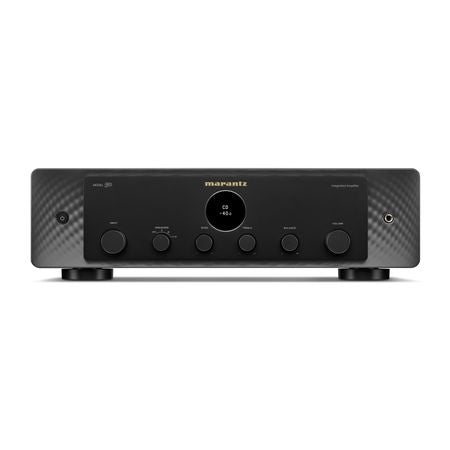

Marantz MODEL 50 Stereo Integrated Amplifier - Black
Marantz MODEL 50 Stereo Integrated Amplifier - BlackThe Marantz MODEL 50 is a two-channel integrated amplifier built around a Class EEEngine topology, offering a straightforward high-fidelity amplification option for dedicated stereo listening setups. With six analog inputs and a clean signal path,...
PRODUCT DETAILS
Everything you need to know.
Marantz MODEL 50 Stereo Integrated Amplifier - Black
The Marantz MODEL 50 is a two-channel integrated amplifier built around a Class EEEngine topology, offering a straightforward high-fidelity amplification option for dedicated stereo listening setups. With six analog inputs and a clean signal path, it serves listeners who prioritize source flexibility and low-distortion performance over digital feature sets.
Output is rated at 100 watts per channel into 8 ohms and 70 watts into 4 ohms, with total harmonic distortion measured at 0.02%. Frequency response spans 5 Hz to 100 kHz, dynamic range reaches 112 dB, and the signal-to-noise ratio is 112 dB within the audible range. The unit operates on AC 120V/60Hz and occupies a 3U rack slot at 17.4 x 16.7 x 5.1 inches.
Key Features
- 100W per channel at 8 ohms, 70W at 4 ohms
- Class EEEngine amplifier topology
- 0.02% total harmonic distortion
- 112 dB dynamic range and signal-to-noise ratio
- 5 Hz-100 kHz frequency response
- Six analog inputs
- 3U rack-compatible chassis
Specifications
- Power Output @ 4 ohm: 70 W
- Rack Spacing: 3U
- Power Output @ 8 ohm: 100 W
- Topology: Class EEEngine
- Total Harmonic Distortion (THD): 0.02 %
- Power Consumption: 220W
- Channels: 2
- Frequency Response: 5 Hz–100 kHz
- Power Connection Type: AC 120 V, 60 Hz
- Dynamic Range: 112 dB (24 bit, Audible range) 100 dB (16 bit, Audible range)
- LED Indicators: Yes
- Operating Temperature: 41 °F - 95 °F (5 °C - 35 °C)
- Weight: 22 lb 11 oz
- Signal to Noise Ratio: 112 dB (Audible range)
- Nominal Impedance: 8 Ohms
- Dimensions (W x H x D): 17.4"x 16.7" x 5.1"
