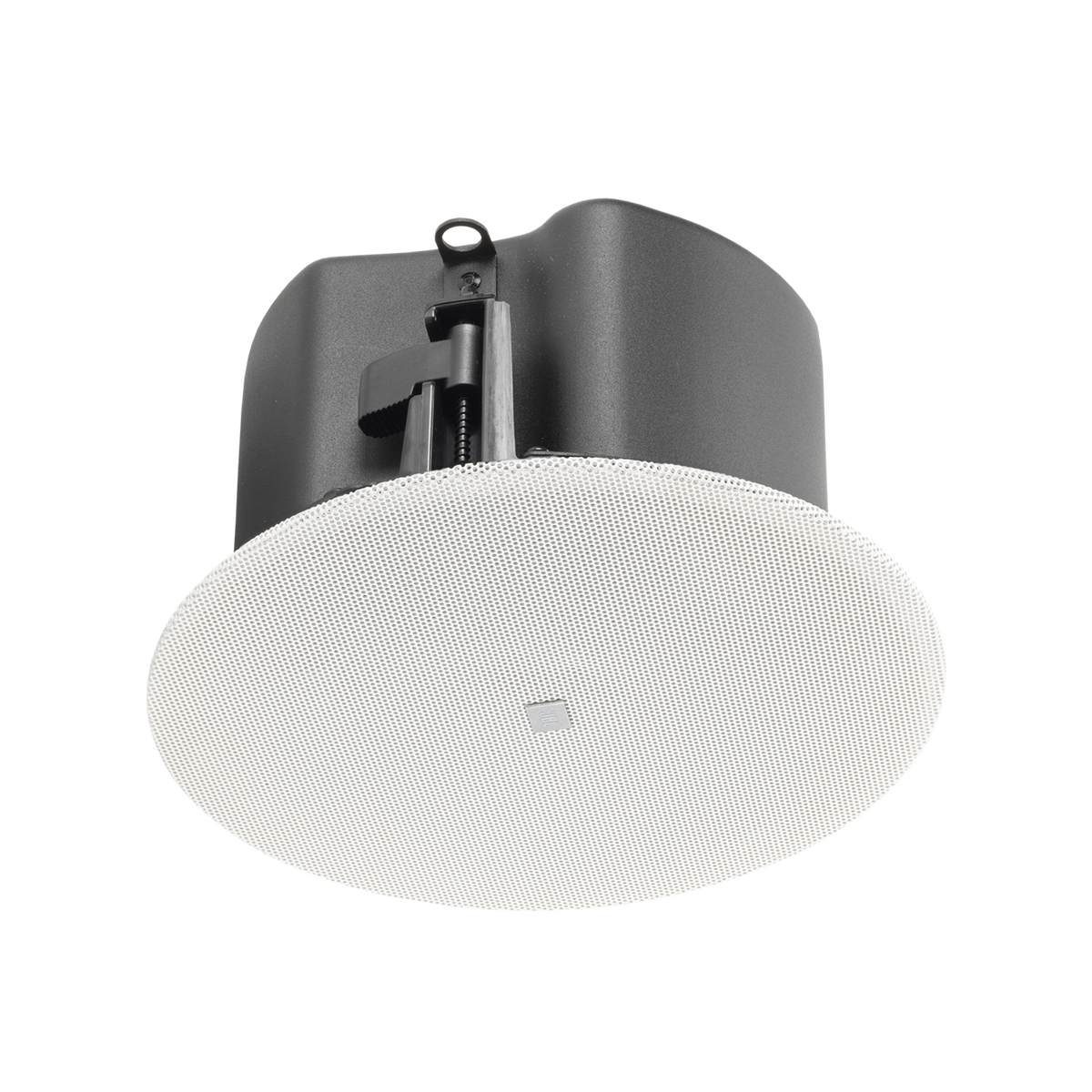

JBL Control 414C/T MicroPlus 4-Inch High-Output Ceiling Loudspeaker (Pair)
In stock SKU: JBL-C414MPT-PAIR

AudioNest

JBL Control 414C/T MicroPlus 4-Inch High-Output Ceiling Loudspeaker (Pair)

$334.50

JBL Control 414C/T Microplus 4-Inch 2-Way High-Output Ceiling Loudspeaker with Low-Profile Enclosure The JBL Control 414C/T Microplus is a 4-inch two-way high-output ceiling loudspeaker from the Control 400 Standard Coverage Series, combining a low-profile 4.6-inch deep enclosure with higher power handling than...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

JBL Control 414C/T Microplus 4-Inch 2-Way High-Output Ceiling Loudspeaker with Low-Profile Enclosure

The JBL Control 414C/T Microplus is a 4-inch two-way high-output ceiling loudspeaker from the Control 400 Standard Coverage Series, combining a low-profile 4.6-inch deep enclosure with higher power handling than the standard Micro variant - delivering elevated SPL capability in restricted-plenum environments that demand more acoustic output.

The Microplus is the go-to choice for integrators who need ceiling-depth flexibility without compromising system headroom. With a 160-degree wide coverage pattern and support for both 70V/100V distributed systems and direct 8-ohm operation, it serves large commercial spaces including airports, convention center lobbies, food courts, and open-plan offices where background music or paging must reach every listener.

All Control 400 Series models are engineered with installer-friendly features: terminal covers with top and side cable entry, captive hand-screws for tool-free securing, and a captive dogear mounting system compatible with a wide range of ceiling thicknesses. The full-face magnetic grille is paintable and includes an integrated safety tether, meeting UL 1480A, UL 2043, NFPA 90A, and NFPA 70 requirements for plenum-rated installations.

Key Features

  • High-Output Low-Profile Design: Delivers elevated power handling in a 4.6-inch deep enclosure, bridging the gap between the Micro and full-depth 414C/T for demanding restricted-plenum applications.
  • 160-Degree Wide Coverage: Extremely broad dispersion pattern ensures consistent sound from listener to listener across large ceiling grid installations.
  • 4-Inch Two-Way Coaxial Driver: 100mm woofer paired with a soft-dome tweeter covers a wide frequency range for both music fidelity and speech intelligibility.
  • 70V/100V Transformer Included: 25W transformers included for distributed audio system compatibility, with direct-impedance input also available.
  • Paintable Magnetic Grille: Full-face magnetic grille with integrated safety tether accepts standard latex paint to match any ceiling finish.
  • Plenum-Rated: UL 1480A and UL 2043 listed, suitable for air-handling ceiling spaces per NFPA 90A and NFPA 70.

Technical Specifications

  • LF Driver: 103 mm (4 in) woofer
  • HF Driver: 13 mm (0.5 in) tweeter
  • Frequency Range: 69 Hz - 25 kHz
  • Coverage Pattern: 160 degrees
  • Transformer: 25W, 70V/100V
  • Impedance (Direct): 8 ohm (combined 70V/100V and low impedance operation)
  • Sold As: Pair
  • Dimensions (H x Dia.): 4.6 in (114 mm) H x 8.1 in (203 mm) dia.
  • IP Rating: IP33 per EN/IEC 60529
  • Safety Certifications: UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No. 205
  • Operating Temperature: 0 deg C to 45 deg C

What's Included

  • (2) JBL Control 414C/T Microplus Ceiling Loudspeakers
  • Mounting Hardware
  • White Round Paintable Magnetic Grilles
