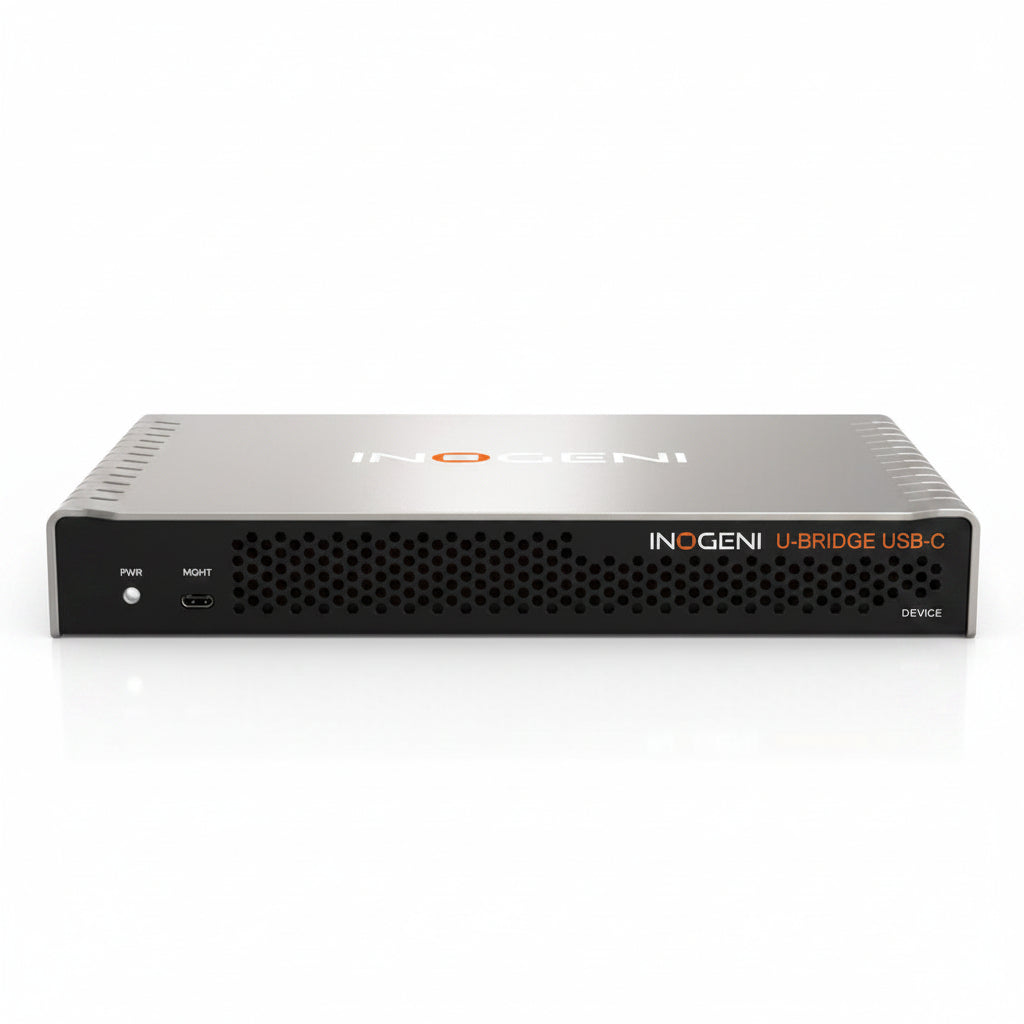

INOGENI U-BRIDGE USB-C 4K60 Extender

INOGENI U-BRIDGE USB-C 4K Extender

The INOGENI U-BRIDGE USB-C 4K Extender carries USB 2.0, DisplayPort Alternate Mode video, Ethernet, and laptop charging over one CAT6A U/FTP link. The Original model supports one display at up to 4K60, while the DUO adds two HDMI outputs for a dual-display extended desktop at up to 4K30 per screen.

This host-and-device extender simplifies BYOM, meaning Bring Your Own Meeting, in conference rooms, classrooms, and collaborative workspaces. It connects a laptop at the table to a distant videobar, camera, speakerphone, network, and room display. Select the Original for a single-display USB-C conference room or the DUO for a dual-monitor BYOM installation.

Both variants use HDBaseT 3.0 and support UVC/UAC camera and audio interfaces, 100W laptop charging, and IP management. USB devices operate at USB 2.0 speeds through the standard link. Installations requiring SuperSpeed USB 3.2 Gen 1 can add a separate U-BRIDGE 3 extender through the dedicated USB3-EXT connections.

Key Features

• Original and DUO Variants: Choose one HDMI display output or two outputs with extended-desktop support.
• Long-Distance CAT6A Extension: Carries USB-C functions up to 230 feet, with 4K60 operation supported up to 132 feet.
• DisplayPort Alternate Mode: Extends compatible USB-C video without separating the laptop connection into multiple cables.
• 100W Laptop Charging: Powers a connected laptop through the included USB-C power supply while extending video, data, and Ethernet.
• Conference Peripheral Support: Connects compatible cameras, videobars, speakerphones, microphones, audio devices, and human-interface devices.
• Uncompressed Video Transport: Uses HDBaseT 3.0 with HDMI 2.0b, HDCP 2.3, and 4:4:4 or 4:2:2 chroma support.
• Ethernet Passthrough and Management: Provides network access and an IP interface with DHCP or static addressing.
• Installation-Ready Hardware: Lockable USB-C and HDMI connections, metal enclosures, status indicators, and mounting brackets support permanent AV installations.

Technical Specifications

Available Variants

• Original Model: U-BRIDGE USB-C
• Original Display Configuration: One HDMI output or one USB-C DisplayPort Alternate Mode output
• Original Maximum Video: 3840 x 2160p60 or 4096 x 2160p60
• Original UPC: 051497480417
• DUO Model: U-BRIDGE USB-C DUO
• DUO Display Configuration: Two HDMI outputs with dual-screen extended-desktop support
• DUO Maximum Single-Display Video: 4K60
• DUO Maximum Dual-Display Video: Two 4K30 outputs
• DUO UPC: 051497480431

Extension Link

• Link Technology: HDBaseT 3.0
• Cable Type: CAT6A U/FTP
• 4K60 Maximum Distance: 132 feet
• Original 4K30 Maximum Distance: 230 feet
• DUO 4K Maximum Distance: 132 feet
• DUO 1080p Maximum Distance: 230 feet
• Host Module Power: Supplied from the device module over the CAT6A link

Video Specifications

• Original HDMI Outputs: One HDMI 2.0 receptacle with cable-locking support
• DUO HDMI Outputs: Two HDMI outputs
• USB-C Video Output: DisplayPort Alternate Mode source connection
• HDMI Compliance: HDMI 2.0b and HDMI 1.4
• DVI Compliance: DVI 1.0
• HDCP Compliance: HDCP 2.3, HDCP 2.2, and HDCP 1.4
• Sampling Frequency: 600 MHz
• Color Formats: YUV and RGB
• Chroma Subsampling: 4:4:4 and 4:2:2
• CEC: Sends Consumer Electronics Control commands to a connected HDMI display
• Original Output Priority: The USB-C DisplayPort Alternate Mode output takes priority over HDMI when both are connected

USB and Network Performance

• Standard Extended USB Speed: USB 2.0 up to 480 Mbps
• Optional SuperSpeed Extension: USB 3.2 Gen 1 when paired with a separate U-BRIDGE 3 through the USB3-EXT ports
• USB Transfer Types: Bulk, isochronous, interrupt, and control
• Transfer Processing: Hardware acceleration for bulk and isochronous transfers
• Shared USB Peripheral Power: Up to 1.8A
• Device USB-A Power: 900mA per port
• Device USB-C Power: Up to 3A
• IP Interface Speed: 10/100 Mbps
• IP Addressing: DHCP or static addressing
• IP Functions: Device control, management, and laptop Ethernet connectivity
• Operating System Support: Plug-and-play operation with Windows, macOS, and Linux
• Network Passthrough Limitation: Laptop Ethernet connectivity is supported on Windows and Linux but not on the current macOS-compatible hardware revision
• Drivers: No driver installation required

PC Host Module Connections

• Laptop Connection: One lockable USB-C receptacle for USB 2.0, DisplayPort Alternate Mode video, Ethernet, and charging
• Laptop Power Input: One lockable USB-C receptacle for the included USB-C power supply
• USB3-EXT Connection: One USB-A connector for an optional U-BRIDGE 3 extender
• HDBaseT Link: One RJ45 connector
• Status Indicators: Power and charging LEDs

Device Module Connections

• USB-C Device Port: One lockable USB-C receptacle supporting DisplayPort Alternate Mode and USB extension
• USB-A Device Ports: Two USB-A 3.2 Gen 1 receptacles operating at USB 2.0 speed through the standard extension link
• USB3-EXT Connection: One USB-B connector for an optional U-BRIDGE 3 extender
• Original HDMI Output: One HDMI output
• DUO HDMI Outputs: Two HDMI outputs
• LAN Connection: One RJ45 port for Ethernet passthrough and management
• HDBaseT Link: One RJ45 connector
• Power Input: 24V DC
• Status Indicator: Power LED

Power

• Main Power Supply Input: 100 to 240V AC
• Main Power Supply Output: 24V DC at 2.5A
• USB-C Power Supply Input: 100 to 240V AC
• USB-C Power Supply Output: Up to 20V DC at 5A
• Maximum Laptop Charging: 100W

Original Model Physical Specifications

• PC Host Module Dimensions: 4.7 x 5.5 x 1.2 inches W x L x H
• PC Host Module Weight: 1 lb
• Device Module Dimensions: 8.8 x 5.5 x 1.2 inches W x L x H
• Device Module Weight: 1.8 lb
• Package Dimensions: 14 x 11.4 x 5 inches W x L x H
• Package Weight: 10 lb
• Enclosure: Aluminum and metal
• Mounting: Mounting brackets included

Environmental and Compliance

• Operating Temperature: 32 to 122 degrees Fahrenheit
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Temperature: -4 to 158 degrees Fahrenheit
• Storage Humidity: 10% to 90% relative humidity, non-condensing
• Device Certifications: FCC, CE, UKCA, RoHS, SoV, RCM, and NOM
• Additional Power Certifications: CB, UL, TUV, EMC, and IEC 62368
• TAA Compliance: Yes
• Country of Origin: Canada

What's In the Box

Original U-BRIDGE USB-C

• PC host extender module
• Device extender module
• 6-foot USB-C to USB-C cable
• 3-foot micro-USB to USB-A cable
• Quick Start Guide
• Two mounting brackets for the main power supply
• Two mounting brackets for the USB-C power supply
• Two mounting brackets for the PC host module
• Two mounting brackets for the device module
• 16 black mounting screws
• 24V DC power supply
• 100W USB-C power supply
• Country-specific power cord

U-BRIDGE USB-C DUO

• PC host and device extender modules
• USB-C to USB-C cable
• Two mounting brackets for the power supply
• Two mounting brackets for the PC host module
• Two mounting brackets for the device module
• 12 mounting screws
• Power supply
