DVDO 4K 1x4 HDMI Splitter with Category Outputs

DVDO 4K 1x4 HDMI Splitter with Category Outputs

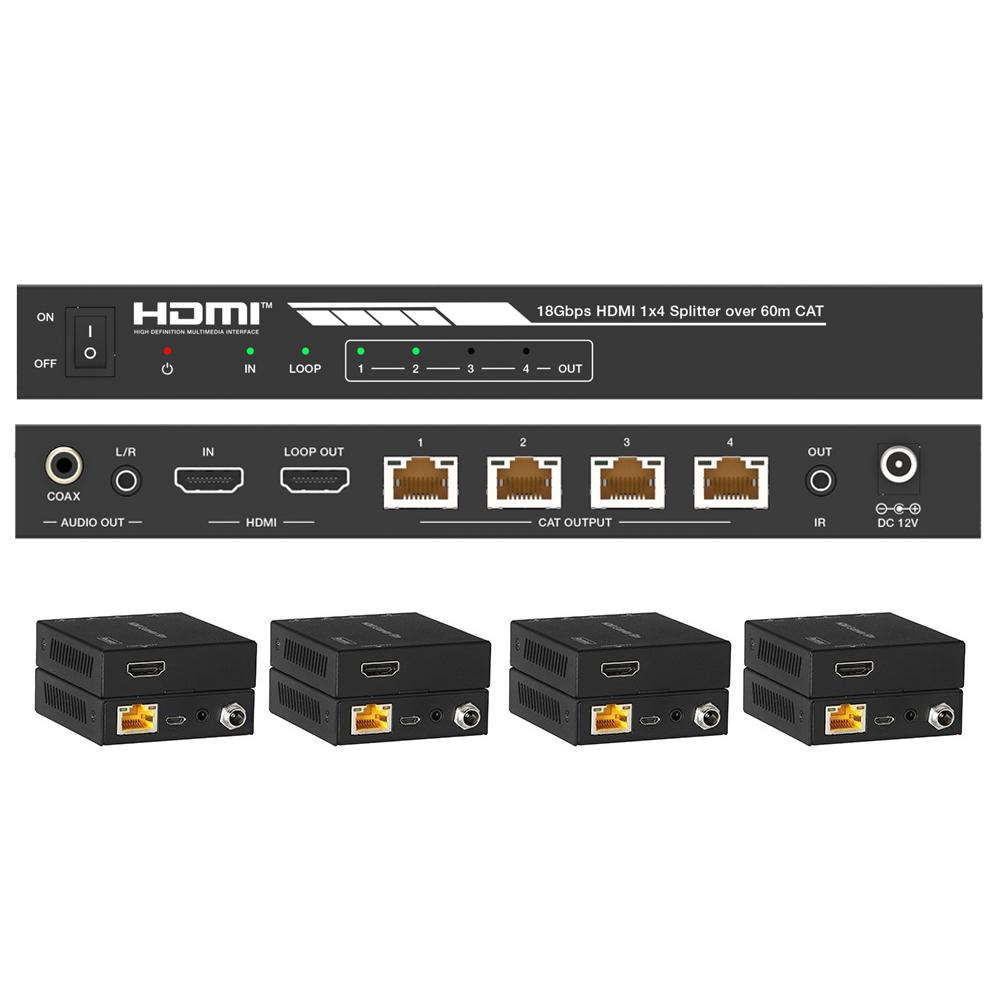

The DVDO-Splitter-14-CAT distributes a single HDMI source to four remote displays over standard category cable, shipping with four Cat receivers plus a local HDMI loop output. Its 18Gbps bandwidth carries resolutions up to 4K2K@60Hz 4:4:4, making it a practical distribution backbone for installations where displays sit a long cable run from the source equipment.

Signal reach scales with resolution: 115ft/35m at 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, and 197ft/60m at 1080p60 over a single Cat6/6a/7 run. HDMI 2.0b and HDCP 2.2 compliance is joined by HDR10, HDR10+, HLG, and Dolby Vision support, up to 7.1-channel HD audio pass-through, coaxial and analog de-embedded audio outputs, one-way IR control from the receiver side, PoC powering, and advanced EDID management.

Key Features

• 1x4 HDMI splitter with four included Cat receivers and HDMI loop output
• HDMI 2.0b and HDCP 2.2/1.x compliant with 18Gbps video bandwidth
• Resolutions up to 4K2K@50/60Hz 4:4:4 with HDR10, HDR10+, HLG, and Dolby Vision
• Extends 115ft/35m at 4K60, 164ft/50m at 4K30, or 197ft/60m at 1080p60 over Cat6/6a/7
• Coaxial and analog L/R outputs de-embed audio; up to 7.1CH HD audio pass-through
• One-way PoC powers receivers from the transmitter; IR control of sources from the Rx side
• Advanced EDID management via dial switch

Specifications

• Technical: HDMI Compliance ; HDMI 2.0b; HDCP Compliance ; HDCP 2.2/1.x; Video Bandwidth ; 594MHz/18Gbps; Video Resolution ; Up to 4k2k@50/60Hz 4:4:4; Color Depth ; 8-bit,10-bit,12-bit(1080p@60Hz); 8-bit (4K2K@60Hz YUV4:4:4); 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0); Color Space ; RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0; HDR Support ; HDR10, HDR10+, HLG, Dolby vision; HDMI Audio Formats ; LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X; Coaxial Audio Formats ; PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1; Analog Audio Formats ; PCM 2.0CH; ESD Protection ; Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
• Connection: Input ; 1×HDMI Type A (19-pin female); Output ; 1×HDMI Type A (19-pin female）; 4x CAT OUT [RJ45, 8-pin female]; 1x Coaxial Audio OUT [RCA]; 1x L/R Audio OUT [3.5mm Stereo Mini-jack]; Control ; 1×SERVICE (Micro USB, Update port）; 1x EDID DIAL switch [5-pin]; 1x IR OUT [3.5mm Stereo Mini-jack]
• Mechanical: Housing ; Metal Enclosure; Silkscreen Color ; Black; Dimensions ; Transmitter: 210mm (W) × 100mm (D) × 25mm (H); Receiver: 88mm (W) × 61mm (D) × 18mm (H); Weight ; Transmitter: 617g Receiver:155g; Power Supply ; Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified); Power Consumption ; 14W; Operation Temperature ; 0°C ~ 40°C / 32°F ~ 104°F; Storage Temperature ; -20°C ~ 60°C / -4°F ~ 140°F; Relative Humidity ; 20~90% RH (non-condensing)

What's Included

• 1x 18Gbps 1x4 HDMI Splitter over 60m CAT
• 4x CAT Receivers
• 1x IR Blaster Cable (1.5m)
• 4x 20K~60KHz IR Receiver Cable (1.5m)
• 1x 12V/2.5A DC Locking Power Adapter
• 1x User Manual
