Denon Home Amp - Black
Denon Home Amp - BlackThe Denon Home Amp is a compact two-channel stereo amplifier designed to pair with passive speakers in a HEOS-based whole-home audio system. At 4.5 lbs and under 9 inches deep, it is sized for discreet in-room placement or...
PRODUCT DETAILS
Everything you need to know.

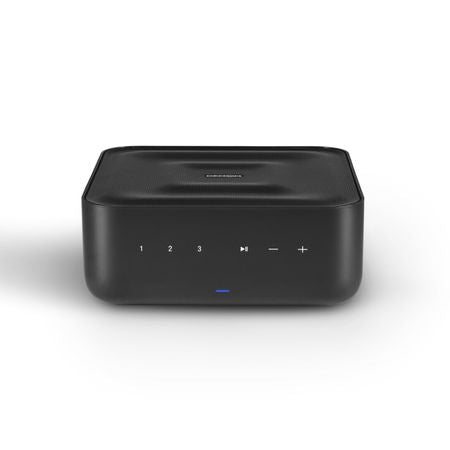

Denon Home Amp - Black
The Denon Home Amp is a compact two-channel stereo amplifier designed to pair with passive speakers in a HEOS-based whole-home audio system. At 4.5 lbs and under 9 inches deep, it is sized for discreet in-room placement or installation in a small enclosure, making it practical for distributed audio zones as well as desktop listening setups.
The Home Amp delivers 100W per channel into 8 ohms (20 Hz to 20 kHz, 0.05% THD) and 125W per channel into 4 ohms (1 kHz, 0.1% THD). Total harmonic distortion is rated at 0.05%, with frequency response of 20 Hz to 20 kHz within plus or minus 1.5 dB. Input sensitivity is 200 mV into 20 kilohms, and the impedance range spans 4 to 16 ohms. Power consumption is 70W at rated output.
Key Features
- 100W x 2 into 8 ohms (20 Hz-20 kHz, 0.05% THD)
- 125W x 2 into 4 ohms (1 kHz, 0.1% THD)
- THD: 0.05%, frequency response 20 Hz to 20 kHz (+/-1.5 dB)
- Compatible with 4 to 16-ohm speaker loads
- Input sensitivity: 200 mV / 20 kilohms
- Compact 8.54 x 3.4 x 9.21-inch chassis at 4.5 lbs
- 70W power consumption
Specifications
- Rack Spacing: 2U
- Impedance Input: 4–16 Ω/ohms
- Power Output @ 4 ohm: 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%)
- Power Output @ 8 ohm: 100 W + 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
- Total Harmonic Distortion (THD): 0.05 %
- Power Consumption: 70 W
- Channels: 2
- Frequency Response: 20 Hz to 20 kHz: ±1.5 dB
- Power Connection Type: AC 120 V, 60 Hz (for North America)
- Operating Temperature: 41 °F - 95 °F (5 °C - 35 °C)
- Weight: 4.5 lbs
- Sensitivity Input: 200 mV/20 kΩ/kohms
- Dimensions (W x H x D): 8.54 x 3.4 x 9.21 inches
