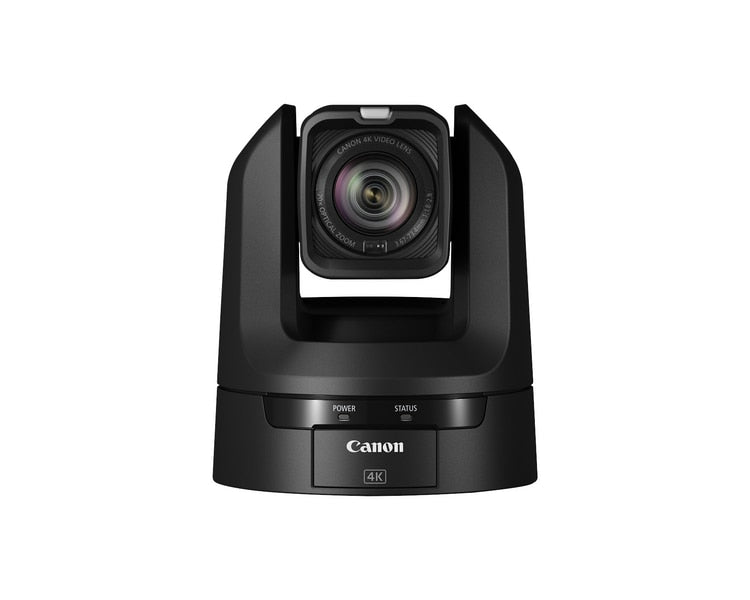

Canon CR-N100 20x NDI|HX PTZ Camera - Black

Canon CR-N100 20x NDI|HX PTZ Camera - Black

The Canon CR-N100 in black is a compact, cost-effective 20x NDI|HX PTZ camera built to deliver professional image quality where a discreet form factor matters. It serves houses of worship, education, broadcast, corporate, and event installations that need 4K capture without a large camera footprint or a dedicated operator at every position.

A 1/2.3-inch CMOS sensor and DIGIC DV6 processor capture 4K UHD at 30 fps or oversampled Full HD at 60 fps, with Hybrid AF combining contrast and phase-detection focusing. The stabilized 20x optical zoom covers approximately 29.3-601mm equivalent in 4K, while HDMI, IP, and USB outputs, built-in NDI|HX and SRT, PoE+ support, a front tally lamp, and Canon XC Protocol control simplify integration.

Key Features

• 4K UHD 30p and Full HD 60p over HDMI and IP
• 20x optical zoom with Optical Image Stabilization, approx. 29.3-601mm equivalent in 4K
• Hybrid AF combining contrast and phase-detection focusing
• Built-in NDI|HX and SRT support with PoE+ connectivity
• HDMI, IP, and USB video outputs plus Canon Webcam Driver support
• Pan range of +/-170 degrees with a high-precision drive mechanism
• Front tally lamp indicates camera status at a glance

Specifications

• Digital: 20x
• Optical: 20x
• Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
• Effective pixels: approx. 8.29 megapixels (3840 x 2160)
• f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
• 35mm equivalent focal length:
• [4K UHD] approx. 29.3 (W) – 601 mm (T)
• [Full HD] approx. 30.5 (W) – 627 mm (T)
• 12 elements in 10 groups (including 2 aspheric elements)
• 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
• [4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T)
• [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T)
• 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Manual/Automatic aperture
• 0.0 dB – 36 dB
• AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual *Color temperatures are given for reference purposes only
• Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
• Normal1 (Standard), Normal3 (BT.709)
• Optical-shift
• Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
• Pan operation range: Horizontal ±170°
• Pan operation speed: 0.2° – 300°/sec.
• Tilt operation range: Vertical -30° – +100°
• Tilt operation speed: 0.2° – 180°/sec.
• 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
• 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. *A frame rate that exceeds the frame frequency cannot be selected. *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
• Protocol: XC Protocol, RTSP/RTP, NDI®|HX, SRT, RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP)
• Max. 100 (including home position)
• LAN, Wi-Fi, Serial, IR
• LAN x 1, RJ45, 1000Base-T
• HDMI connector x 1, output only
• RJ45 connector x 1
• 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
• Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k ormore/Att.: 20 dB
• Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more
• Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
• Type-C (USB 3.0) x 1
• Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
• External power source: 24 V DC (using included AC adaptor)
• PoE+ Input: Approx. 13.9 W max. (body only)
• DC Input: Approx. 13.3 W max. (body only)
• Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
• Approx. 2.2 kg (4.86 lb.) (body only)
• Hardware: RC-IP100, RC-IP1000
• Software: Remote Camera Control Application
• Camera
• Zoom
• Image Sensor
• Total pixels: approx. 21.14 megapixels
• Lens
• Lens Configuration
• Minimum Focusing Distance
• Angle of View
• Shutter Speed
• Iris
• Gain
• White Balance
• Focus
• Gamma
• Image Stabilizer
• Min. Subject Illumination
• Pan and Tilt
• Video Output Format
• HDMI
• IP
• Supported Video and Control Protocols
• Number of Presets
• Interface
• Communication Control
• Network Terminal
• HDMI OUT Terminal
• RS-422 Terminal
• Mic Terminal
• USB Terminal
• Other
• Operating Environment
• Power Supply
• Power Consumption
• Dimensions (W x H x D)
• Weight
• Supported Controllers

What's Included

• CR-N100 Main Unit (BK)
• Mounting Plate with Screw
• Safety Wire
• AC Adapter
• AC Cable
• Infrared Remote Controller with Battery
• Installation Guide
• Warranty Card
