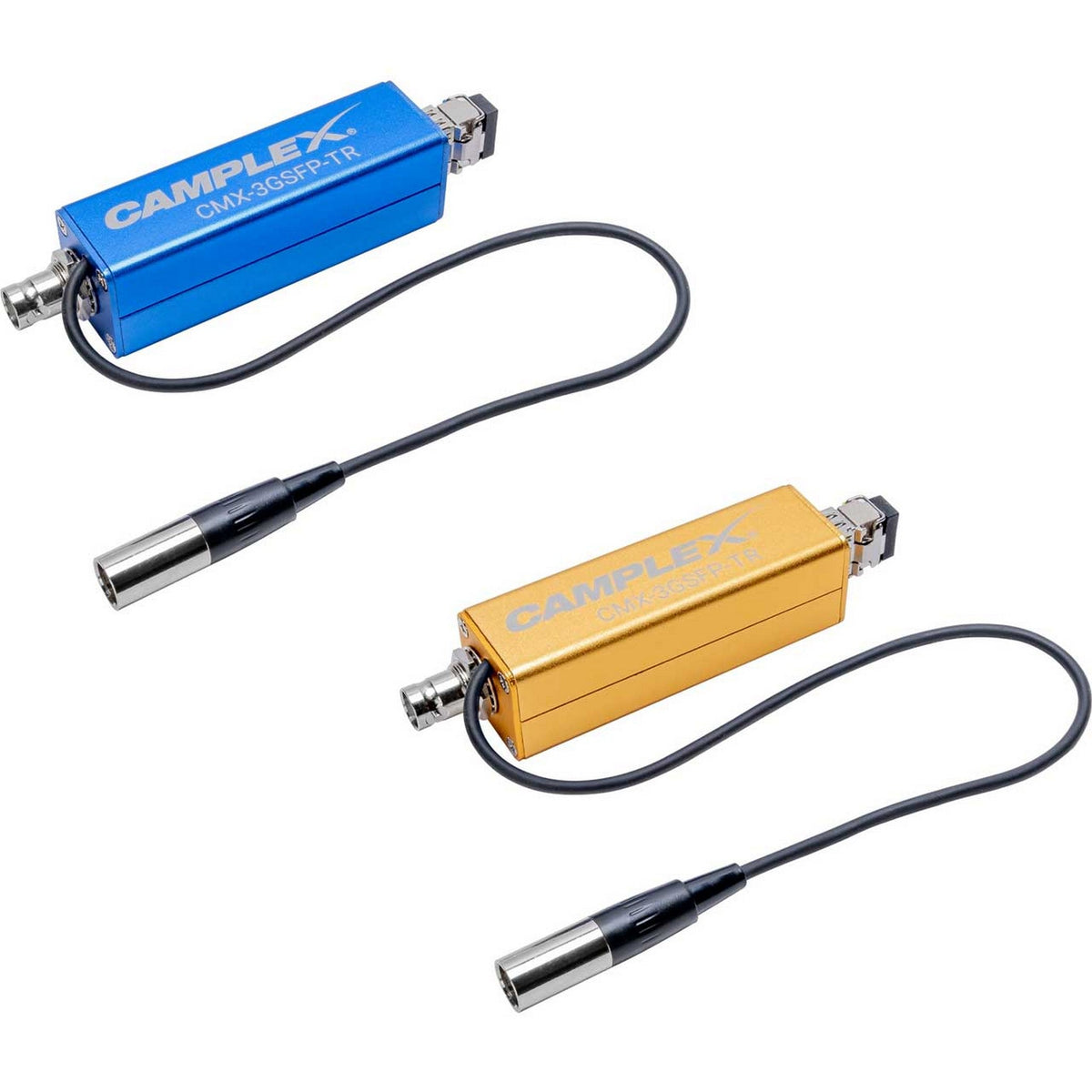

Camplex Mini 1-Channel Unidirectional 3G-SDI over Single-Mode Fiber Extender Set
In stock SKU: CPLX-CMX3GSFPTR

AudioNest

Camplex Mini 1-Channel Unidirectional 3G-SDI over Single-Mode Fiber Extender Set

$436.46

Camplex Mini 1-Channel Unidirectional 3G-SDI over Single-Mode Fiber Extender Set The Camplex CMX-3GSFP-TR 3G-SDI Single Mode Fiber Extender Set sends 3G-SDI video signals up to 1080p@60Hz over one LC single mode fiber. It supports transmission distances up to 18.6 miles, making it...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Camplex Mini 1-Channel Unidirectional 3G-SDI over Single-Mode Fiber Extender Set

The Camplex CMX-3GSFP-TR 3G-SDI Single Mode Fiber Extender Set sends 3G-SDI video signals up to 1080p@60Hz over one LC single mode fiber. It supports transmission distances up to 18.6 miles, making it a compact fiber transport solution for professional video workflows.

Designed for camera systems, computer interfaces, control rooms, production racks, and mobile broadcast setups, this mini 1-channel uni-directional 3G-SDI over fiber extender set helps move high-quality SDI signals across long cable runs. Its compact, lightweight design fits tight equipment spaces where standard conversion hardware may be difficult to install.

The CMX-3GSFP-TR supports SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, and SMPTE-259M SD-SDI formats, along with additional broadcast signal standards such as DVB-ASI and DVB-SSI. With SMPTE 424M clock recovery, automatic cable equalization, and a 19.4Mb/s to 2.97Gb/s data-rate range, it delivers dependable signal extension for professional AV and broadcast environments.

Key Features

  • Sends 3G-SDI signals over one LC single mode fiber up to 18.6 miles
  • Supports resolutions up to 1080p@60Hz for HD video transport
  • Supports SMPTE-424M, SMPTE-292M, and SMPTE-259M SDI standards
  • Compact and lightweight design fits tight racks, camera setups, and field systems
  • Supports data rates from 19.4Mb/s up to 2.97Gb/s
  • SMPTE 424M clock recovery helps maintain stable 3G-SDI performance
  • Automatic cable equalization adjusts based on the detected data rate
  • 5V Mini XLR power connection supports simple installation

Technical Specifications

Model: CMX-3GSFP-TR
Product Type: Single Mode 3G SDI Over Fiber Optic Extender
Signal Direction: Mini 1-Channel Uni-Directional
Connectors: 75Ω BNC Female and simplex LC Female
TV Signal Standard: SMPTE 424M, 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI, and others
Telecom/Datacom Rate: 19.4Mb/s to 2.97Gb/s
Signal Level: 800mV Nominal
Transmission Distance: Up to 18.6 mi
Reflection Loss: >15dB
Operating Temperature: -40°F to 115°F
Power Supply: 5V Mini XLR
Power Consumption: 3W
TX Dimensions: 4.55" x 1.03" x 1.01"
RX Dimensions: 4.23" x 1.02" x 1.01"
