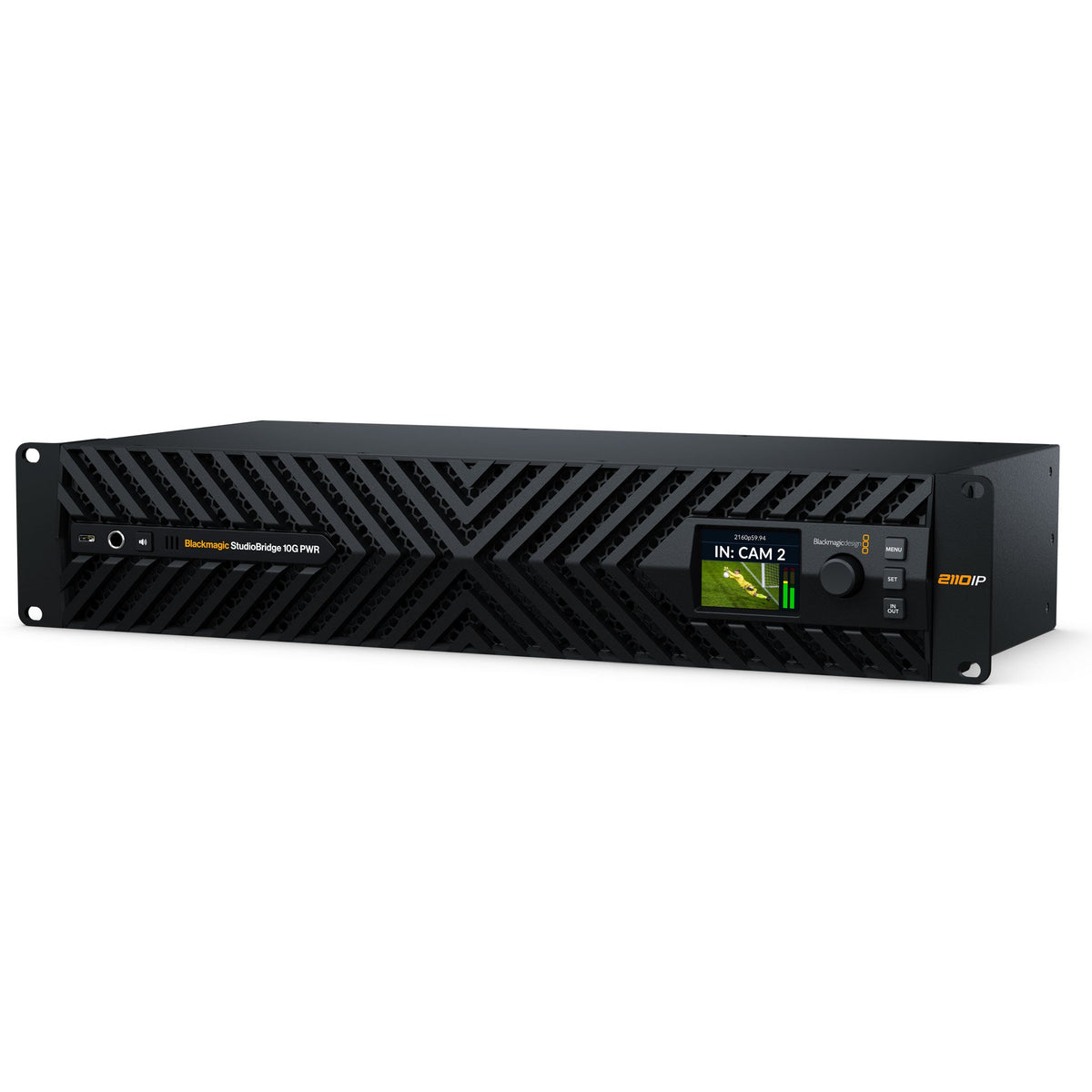

Blackmagic Design StudioBridge 10G PWR SMPTE 2110 IP Bridge PoE++

The Blackmagic StudioBridge 10G PWR is a 2RU SMPTE ST-2110 IP video bridge built to connect affordable single-link 10G Ethernet equipment into high-end, fully redundant 100G broadcast networks. It converts and combines eight channels of 10G Ethernet into a redundant pair of 100G QSFP28 connections, letting you plug in up to eight separate 10G Ethernet Ultra HD devices and route them across two independent ST 2022-7 protected 2110 networks. The result is a cost-effective on-ramp that lets cameras, converters, and other 10G IP sources participate in a resilient 100G SMPTE 2110 infrastructure without compromising redundancy.

What sets the StudioBridge 10G PWR apart is power: each of the eight 10G Ethernet RJ45 ports delivers a massive 90W of PoE++, so compatible cameras, converters, and network devices can be powered directly over the same Cat 6A cable that carries their video. The bridge is bi-directional, handling both senders and receivers, and auto-detects HD and Ultra HD standards up to 2160p60 with 10-bit 4:2:2 color and 16 channels of embedded audio per stream. Full NMOS IS-04/IS-05 discovery and connection management, PTP timing, and SMPTE 2110-20/-21/-30/-40 compliance make it a true plug-and-play element in standards-based IP studios and outside broadcast trucks.

Designed for live production environments, the StudioBridge 10G PWR includes a built-in 2.2-inch LCD, spin knob, three-button control panel, headphone output, and speaker so engineers can scrub through and confirm every input directly on the front panel. Dual internal 100-240V AC power supplies on independent IEC C14 inlets provide power redundancy, while a dedicated 1G RJ45 control port handles NMOS configuration and software updates. It is an ideal choice for broadcasters scaling IP infrastructure who need 10G economy and PoE++ convenience without giving up 100G redundancy.

Features

• Bridges 8 single-link 10G Ethernet SMPTE ST-2110 connections into a redundant pair of 100G Ethernet networks
• 90W PoE++ on every one of the eight 10G RJ45 ports to power cameras, converters, and devices over the same cable
• Dual 100G QSFP28 outputs with SMPTE ST 2022-7 redundancy across two independent 2110 networks
• Bi-directional operation handling both senders and receivers, up to 8 Ultra HD or HD streams per 100G pair
• Auto-detects HD and Ultra HD standards up to 2160p60 with 10-bit 4:2:2 color and 16-channel embedded audio
• Full NMOS IS-04/IS-05 support plus PTP (IEEE 1588-2008) timing for standards-based IP routing
• Built-in 2.2-inch LCD, spin knob, speaker, and headphone monitoring for front-panel input confirmation
• Dual redundant 100-240V internal power supplies with independent IEC C14 inlets in a 2RU chassis

Technical Specifications

• 100G IP Connections: 2 x 100G QSFP28, SMPTE ST 2022-7 redundant
• 10G IP Connections: 8 x 10G PoE++ RJ45
• Senders/Receivers per 100G Pair: 8 x Ultra HD or HD
• Control Network: 1 x 1G RJ45 for NMOS control, config and updates
• Computer Interface: 1 x USB-C for configuration and firmware updates
• PoE Power Output: 8 x 90W PoE++ to downstream devices
• HD Standards: up to 1080p60 / 1080i60 / 720p60
• Ultra HD Standards: up to 2160p60 (4K60)
• Color Precision: 10-bit 4:2:2 YUV; Rec. 709, Rec. 2020
• Embedded Audio: 16 channels per ST 2110 IP video stream
• SMPTE Compliance: 2110-20, 2110-21, 2110-30, 2110-40, 2022-7; PTP IEEE 1588-2008
• Display: Built-in 2.2 inch LCD with spin knob and 3-button control panel
• Power: 2 x 100-240V AC 50/60Hz internal supplies, 2 x IEC C14 inlets
• Form Factor: 2 rack units (2RU)
• Operating Temperature: 5 to 40 C (41 to 104 F)

What's Included

• Blackmagic StudioBridge 10G PWR
• Welcome wallet with QR code for software download
