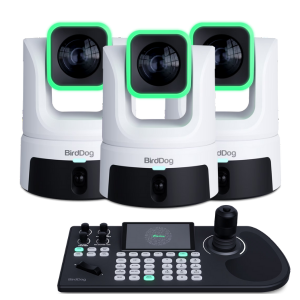

BirdDog 3x XL Ultra PTZ Cameras and KBD Controller Combo (White)

BirdDog 3x XL Ultra PTZ Cameras and KBD Controller Combo (White)

The BirdDog XL Ultra Combo packages three XL Ultra large-sensor PTZ cameras with the BirdDog KBD Controller, giving broadcast, virtual production, and premium AV operations a complete multi-camera system in white. Each camera pairs a 4/3 inch CMOS sensor with 4K60 capture and 20x optical zoom for pronounced depth of field, strong low-light performance, and cinematic image quality under precise operator control.

A second built-in 100 degree panoramic camera with a 1/1.8 inch sensor delivers a simultaneous wide shot, with both cameras independently controllable and outputting 4K60 at once. Connectivity spans simultaneous NDI High Bandwidth and NDI HX3, 12G-SDI, HDMI, SFP+ fiber, PoE++, and balanced XLR audio, plus dual streaming via NDI, SRT, RTMP, or RTSP. The KBD Controller adds a four-camera display, tally integration with TriCaster and vMix, and NDI, VISCA, ONVIF, RS-232, and RS-422 control.

Key Features

• Three XL Ultra PTZ cameras with 4/3 inch CMOS sensors and 4K60 capture
• 20x optical zoom (40x in HD) with pronounced depth of field and low-light performance
• Second built-in 100 degree panoramic camera with 1/1.8 inch sensor; both outputs run 4K60 simultaneously
• AI tracking with control over speed, style, and sensitivity
• Simultaneous NDI High Bandwidth and NDI HX3, plus 12G-SDI, HDMI, SFP+ fiber, PoE++, and balanced XLR audio
• Dual streaming via NDI, SRT, RTMP, or RTSP
• Included KBD Controller displays up to four cameras with tally integration for TriCaster and vMix

Specifications

• PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
• Fine PTZ Control: VISCA-IP, NDI
• Focus Control: Auto Focus, Manual Focus buttons
• Auto Exposure: Direct Button
• Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
• Auto White Balance: Direct Button
• Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
• Auto Focus: Direct Button
• Manual Focus: Direct Button (Near/Far)
• BLC (Backlight Compensation): Direct Button
• Zoom Ring on Joystick: Yes (enable/Disable)
• Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
• AI Camera Mode Control: Camera Dependent, supported
• Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)
• Max. Cameras support: 255
• Direct Camera access keys: 6
• Direct Preset access keys: 10
• Max Preset support: 255 per camera
• OSD Camera Menu: Menu Button / Interaction with Joystick
• Display Resolution: 1280x720
• Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• IP Video CODEC support: h.264, h.265
• Tally Borders: Selectable, Multiview and Full Screen mode
• On Screen Menu: Fully configurable
• Light/Dark Mode: YES
• NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
• NDI Multiview: NDI HX2, NDI HX3
• NDI Router: Yes, follows current active camera
• NDI Discovery: Supported
• NDI Access Manager: Supported
• NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)
• WebUI: BirdUI for setup and firmware updates
• Light/Dark Mode: YES
• API-based Camera Selection: YES
• RS-232: D-Sub connector (9-pin)
• RS-422: Phoenix connector
• Joystick Type: 4D (Integrated Trigger button)
• Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
• Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
• Zoom Rocket: Spring loaded, adjustable
• Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
• Construction Material: Aluminium; OBP Ocean-Bound Plastic
• Integrated Carry Handle: YES
• Operating Temperature: -10°C - +55°C; 14°F - 130°F
• Storage Temperature: -10°C - +55°C; 14°F - 130°F
• Operating Humidity: 20% - 80% (Non-condensing)
• Storage Humidity: 0% - 90% (Non-condensing)
• Power Supply: PoE (802.3af), DC12V
• Power Consumption: ≤5W
• Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
• BirdDog KBD Controller Specs
• Camera Control
• Camera Access
• Display
• NDI Support
• Setup/Configuration
• Serial Connections
• Mechanical
• BirdDog XL Ultra White Specs
• Primary Camera
• Image Sensor: 4/3* Sony CMOS 5K Sensor Lens: 20x Optical Zoom Lens Video Format: 2160p60 Additional resolutions: 2160p60, 59.94, 50, 29.97, 25 1080p60, 59.94, 50, 30, 29.97, 25 1080160, 59.94, 50 720p60, 59.94,50 Focal Length: 9.8mm- 186mm Aperture: f2.8-f4.5 Focus: Auto, Manual AF Method: PDAF (Phase Detection Auto Focus) Horizontal Field of View: 71°- 49 Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR Shutter Speed: 1 / 1 -1/10.000s 3D Noise Reduction: Yes SNR: 300lux-600lux 45-50dB Effective Pixels: 20.89M P Vertical Field of View: 40°-2° Diagonal Field of View: 7 9 ° ~ 4.59 ND Filter: Yes 1, 1/4/1/16, 1/62 Optical Low Pass Filter (OLPF): Yes Image Stabilization: Digital Digital Zoom: 16xSupersampling Filter ring: Yes
• Secondary Panoramic Camera
• Image Sensor: 1/1.8" Sony CMOS 4K sensor Lens: Fixed Focal Length: 4.4mm Aperture: f2.0 Horizontal Field of View: 85° Vertical Field of View: 53° Diagonal Field of View: 93° Mechanical Pan/Tilst Rotation: +170°, -30° -+90° Pan control Speed: 0.05° -120°/ Tilt Control Speed: 0.05°~90% Preset Number: 256 Integrated Tally Ligh: Halo Style, RGB (Front), Number Style (Rear) e-Ink display: 2x 3" Grayscale e-Ink Displays Pan/Tilt Drive System: Ultra-finedrive Quietness: NC 50 (with a sound pressure level corresponding to t h e 500Hz-1kHzfrequencybandbeing49- 51dB) I/O Interface
• VideoOutput Interfaces: 12G-SDI, 3G SDI x2, HDMI 2.0, USB-C, 1Gb RJ45, SFP+ Cage (Ethernet) Video Compression Formats: H.264, H.265, SpeedHQ Network Interfaces: 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP+ Cage (Ethernet) Encoder Network Protocols: High-Bandwidth NDI (SpeedHQ), NDI HX3, NDI HX2, SRT, RT S P.RT M P Decoder Network Protocols: NDI HX3, NDIO HX2 Decoder Supported Resolutions: 080p @60/59.94 / 50/30 / 29.97 / 25fps, 720p @60, 59.94, 50fps Control Interfaces: 1Gb Ethernet, SP+, RS232 (input &output), RS42, TYPE-C (UVC) Control Protocols: VISCA-IP, NDI, VISCA Serial, Pelco-P, Pelco-D FreeD Protocol: Supported - UDP /NDI® Embedded Analogue Audio: Balanced Audio XLR x 2 Digital Audio: Embedded with Main and secondary HDMI, 12G-SDI, Network Video, USB (UVC) Genlock: Supported Timecode: Supported SD Card Slot: MicroSD - Recording supported Kensington Lock: Supported WebUI Control: Integrated BirdDog BirdUl 2.0 API Support: BirdDog RESTful API 2.0, Crestron Libraries, Osys Libraries AI Features
• Presenter Tracking: Advanced with Secondary camera assistance Auto-Framing: Advanced with Secondary camera assistance Zone Tracking: Supported Gesture Control: Supported General
• Environmental Operation: Internal Input Voltage: DC-12V, PoE++ Input current: <60W Power Consumption: 12V5A Working Temperature: 0°C- 40°C(32°F~105°F) Working Humidity: ~20% ~ 80% (Non-condensing) Dimensioned (W*H*D): 218.6 × 291.6 × 263.3mm (8.61 x 11.48 x 10.37in) Weight: 4K

What's Included

• 3 x BirdDog XL Ultra - White
• 1 x BirdDog KBD PTZ Controller with Integrated Screen
