amaran F22x 2x2ft 200W Bi-Color LED Flexible Mat Light (V-Mount)

amaran F22x 2x2ft 200W Bi-Color LED Flexible Mat Light with V-Mount (AP20235A14)

The amaran F22x is a 2x2-foot 200W bi-color LED flexible mat light that outputs 6,960+ lux at 1 meter (5600K) - the highest output in its class for a flexible LED mat at this form factor. Its high-output bi-color chipset tunes from 2500K to 7500K with CRI 95+ and TLCI 98+ color accuracy, making it a powerful, lightweight solution for studio key lighting, interview setups, and on-location production that demands broadcast-quality output without heavy fixtures.

The F22x's flexible fabric mat stretches onto the included folding X-Frame to form a rigid 2x2 panel that mounts directly to a C-stand grip head via the Straight Baby Pin adapter. The included foldable softbox with two diffusion strengths and a fabric grid converts the mat into a large, ultra-thin soft light instantly using integrated hook-and-loop attachment. The silent heat sink built into the ballast means no fan noise on set - a significant advantage for dialog-heavy shoots and documentary work.

The V-Mount battery plate powers the F22x from common V-Mount batteries at 14.4V, 26V, 28.8V, or 48V via 3-Pin XLR. The multi-voltage AC power supply handles studio operation. A 3-meter head cable plus the included 3-meter extension delivers 6 meters of distance between the fixture head and control box. Sidus Link Bluetooth app control enables 9 built-in lighting FX; wired DMX support is available via a separately sold USB-C to 5-Pin DMX512 Adapter.

Key Features

• 200W High-Output Bi-Color: Delivers 6,960+ lux at 1 meter (5600K) - surpassing competing flexible mats at this size - across a 2500K to 7500K tuning range.
• Ultra-Lightweight 2x2 Form Factor: The mat weighs just 1.76 lbs (0.8 kg) and folds flat for travel, stretching onto the included X-Frame for a rigid, mountable panel.
• Silent Operation: The ballast uses a passive heat sink with no fan, eliminating noise that interferes with on-set audio recording.
• Included Softbox + Grid: Hook-and-loop foldable softbox with two diffusion cloths and a light control grid for large-format soft light without a speed ring.
• V-Mount Battery Compatible: Accepts V-Mount batteries at 14.4V, 26V, 28.8V, or 48V via 3-Pin XLR for wireless, mobile operation.
• 9 Built-In Lighting FX: Creative effects including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, and pulsing accessible from the onboard interface.
• Sidus Link App Control: Wireless Bluetooth control with Source Match, Color Picker, and Custom FX; DMX control via separately sold adapter.

Technical Specifications

• Model: F22x
• Form Factor: 2 x 2 ft flexible LED mat
• Power Output: 200W
• Max Power Draw: 240W
• Output: 6,960+ lux @ 1 m (5600K)
• CCT Range: 2500K - 7500K
• CRI: 95+
• TLCI: 98+
• CQS: 96+
• Weight (mat only): 1.76 lbs (0.8 kg)
• Dimming: 0-100% stepless
• Lighting FX: 9 built-in
• Flicker Reduction: Frequency selection up to +2000Hz
• Battery Mount: V-Mount
• DC Power Input: 14.4V / 26V / 28.8V / 48V (3-Pin XLR)
• Head Cable Length: 3 m integrated + 3 m extension included (6 m total)
• Control: Onboard, Sidus Link Bluetooth App, DMX (adapter sold separately)
• Cooling: Passive heat sink (silent)
• Operating Temperature: -10 deg C to 40 deg C (-4 deg F to 113 deg F)

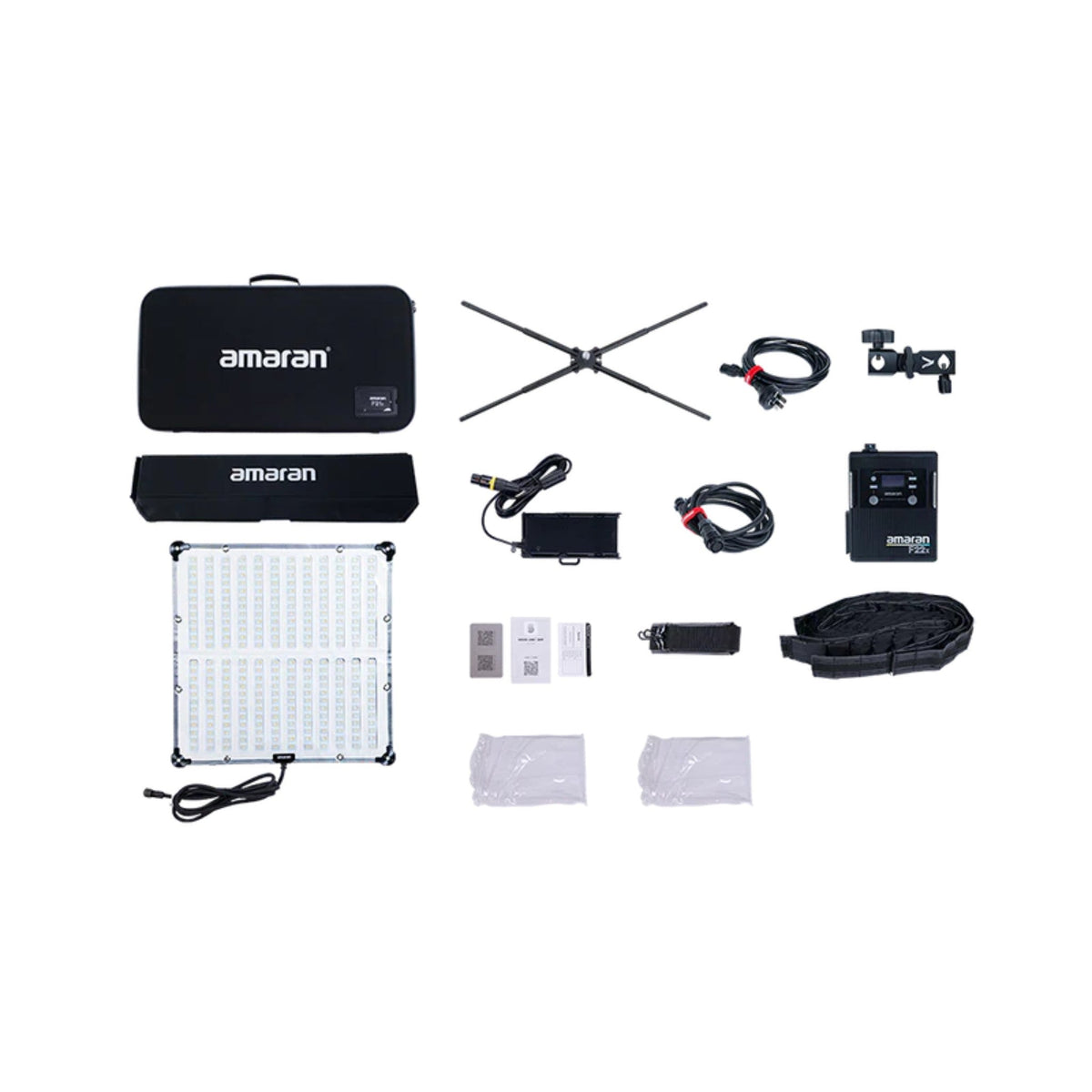

What's in the Box

• amaran F22x 2x2 Bi-Color LED Flexible Mat (V-Mount)
• F22x Control Box with V-Mount Plate
• Head Extension Cable (3 m)
• Support Bracket and Baby Pin Adapters
• Tilting Stand Mount
• F22 Softbox Frame with Diffusion Cloths (x2) and Light Control Grid
• Multi-Voltage AC Power Supply
• AC Power Cable
• Soft Carrying Case
