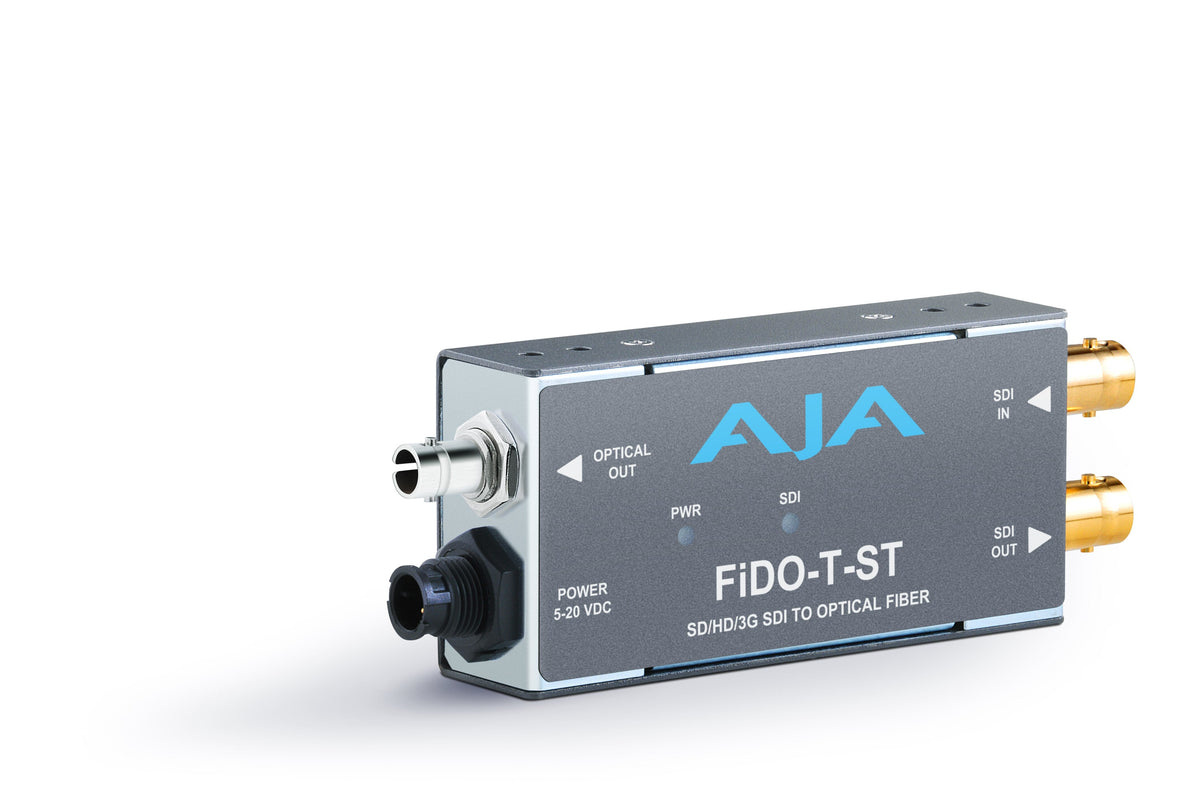

AJA Single channel SDI to ST Fiber converter, with looping SDI output

AJA Single channel SDI to ST Fiber converter, with looping SDI output

This AJA FiDO converter sends a single channel of 3G/HD/SD-SDI over single mode ST fiber, supporting cable runs up to 10 km (32,808 ft) with electrical isolation that helps eliminate ground loop problems. A looping SDI output keeps the source signal available locally, and the compact, low-profile enclosure works in tight spaces around racks, trucks, and camera positions.

Formats auto-select across 3Gb, 1.5Gb, and 270Mb rates over a simplex ST connection. BNC input cable equalization on 1694 coax reaches 400 m at 270Mb, 200 m at 1.5Gb, and 140 m at 3Gb. The transmitter draws 1.5 watts from 5-20 VDC, ships with AJA's DWP-U-R1 worldwide power supply, uses a locking power connector, supports optional P-TAP battery power, and carries a five year warranty.

Key Features

• 1-channel 3G-SDI to single mode ST fiber transmission with looping SDI output
• Cable runs up to 10 km with electrical isolation to eliminate ground loops
• Auto-selects 3Gb, 1.5Gb, and 270Mb SDI rates
• Compact 4.6 x 1.71 x 0.85 inch low-profile enclosure
• 1.5 watt draw from 5-20 VDC; DWP-U-R1 worldwide power supply included
• Limited five year manufacturer warranty

Specifications

• Formats: 3Gb, 1.5Gb, 270Mb, Auto Select
• Video Inputs and Outputs SDI (SMPTE 259/292/296/424), 2x BNC
• 1x Single mode optical fiber, LC connector (FiDO-R, FiDO-T)
• 1x Single mode optical fiber, ST connector (FiDO-T-ST, FiDO-R-ST)
• 1x Single mode optical fiber, SC connector (FiDO-T-SC, FiDO-R-SC)
• 2x Single mode optical fiber, LC connectors (FiDO-2R, FiDO-2T, FiDO-TR)
• Cable Equalization (BNC Inputs, 1694 coax) 270mb, 400m
• 1.5Gb, 200m
• 3Gb, 140m
• Input/Output Return Loss (BNC): >15db, 270Mb - 3Gb
• Optical Outputs Wavelength: 13 10 nm
• Output Power: -2dBm typical
• Size: 4.6” x 1.71 " x.85" (117 x 43.5 x 21.6mm)
• Power +5-20 VDC
• 1.5 watts (FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, and FiDO-R-SC)
• 2.5 watts (FiDO-2R, FiDO-2T, FiDO-TR)
• Requires Power Supply (AJA power supply model DWP-U-R1 included)

What's Included

• AJA FiDO Single-Channel 3G-SDI to ST Fiber Mini Converter
• AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
• Warranty: Limited 5-Year Manufacturer Warranty
