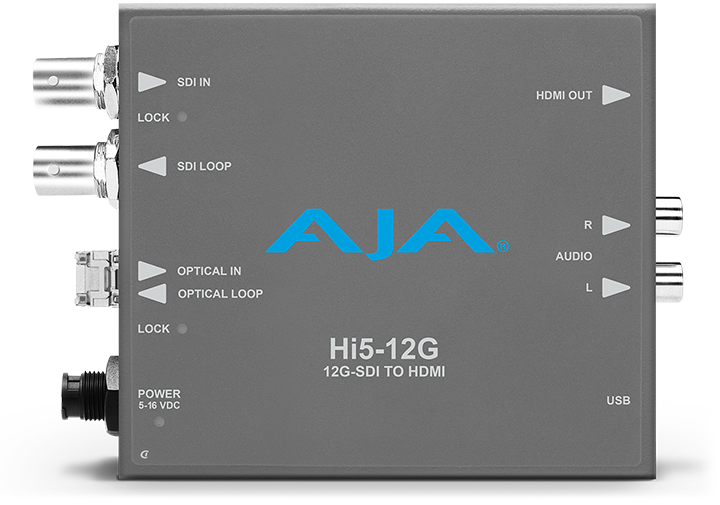

AJA's Hi5 converts single link 12G-SDI to HDMI 2.0, giving production and broadcast teams a straightforward way to monitor professional SDI sources on HDMI displays. Compact enough to sit behind a monitor or ride along on a camera rig, it serves edit suites, machine rooms, and field setups where 4K and UltraHD SDI signals need to reach HDMI screens.

The 12G-SDI BNC input follows SMPTE 259/292/424/2081/2082 and handles YCbCr 4:2:2 and 4:4:4 plus RGB 4:4:4 at 8-, 10-, or 12-bit, with Two Sample Interleave mapping for 4K and UltraHD sources. A single 12 Gb link carries 4096x2160p or 3840x2160p up to 60 fps, while 6G, 3G, 1.5G, and 270 Mb SDI rates cover 2K, HD, and SD formats. A universal power supply is included.

Key Features

• Converts single link 12G-SDI to HDMI 2.0 for display monitoring
• 4K 4096x2160p and UltraHD 3840x2160p up to 60 fps over one 12 Gb input
• Also accepts 6G, 3G, 1.5G, and 270 Mb SDI down to SD
• YCbCr 4:2:2/4:4:4 and RGB 4:4:4 at 8-, 10-, or 12-bit
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• Compact mini-converter housing with universal power supply included

Specifications

• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p
• (SD) 720x576i
• (SD) 720x480i
• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• YCbCr 4:2:2/4:4:4
• RGB 4:4:4, SMPTE or Full level
• 8, 10, 12-bit
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• 1x 12 Gb SDI -(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 -(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1x 6 Gb SDI -(4K) 4096x2160p 23.98, 24, 25, 29.97, 30 -(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
• 1x 3 Gb SDI (Level A or B Dual Link) -(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 -(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 -(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 -(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 -(HD) 1920x1080i 50, 59.94, 60 -(HD) 1280x720p* 50, 59.94, 60
• 1x 1.5 Gb SDI -(2K) 2048x1080p 23.98, 24, 25, 29.97, 30 -(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 -(HD) 1920x1080p 23.98, 24, 25, 29.97, 30 -(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 -(HD) 1920x1080i 50, 59.94, 60 -(HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI -(SD) 625i 50 -(SD) 525i 59.94
• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 -Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max) -Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps) -Overload Power: -2 dBm (min)
• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082 -Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max) -Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps) -Overload Power: -2 dBm (min)
• 1x HDMI Type A connector*, HDMI v2.0b
• HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
• YCbCr 4:2:2/4:4:4/4:2:0
• RGB 4:4:4, SMPTE or Full level
• 24, 30, or 36 Bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 720x576i 50
• (SD) 720x480i 59.94
• PCM
• Dolby Digital (AC-3)
• Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
• Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
• Optical Power: -5 dBm (min), 0.5 dBm (max)
• Extinction Ratio: 5.4 dB (min)
• SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
• HDMI embedded audio, 24-bit, 8-channel
• 2x RCA style connector, 2-channel -10dBu (nominal)
• USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
• 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)
• 0.5 lb (0.3 kg)
• 5-16VDC regulated, 11 watts, power supply required included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
• Video Formats
• Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in the Download / Documents section of the website product page.
• Video Input Digital
• *1280x720p is Level A Only
• Input Signal Selection -Hi5-12G-R and Hi5-12G-TR Only
• Input Signal Selection - Hi5-12G-R-ST Only
• Video Output Digital
• *If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
• Audio Pass-Through Formats
• Video Output Digital - Additional for Hi5-12G-TR Only
• Audio Input Digital
• Audio Output Digital
• Audio Output Analog
• User Interface
• Size (w x d x h)
• Weight
• Power
• Environment
• *Hi5-12G devices use approximately 11 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack a Hi5-12G device with other Mini-Converters.

What's Included

• AJA HI5 12G-SDI to HDMI 2.0 Conversion
